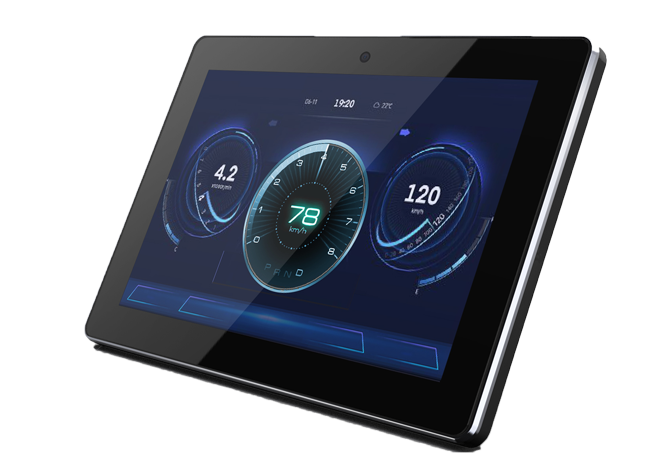

Product overview
See the product catalogue for more information
Parameter
|
KERNEL |
|
|---|---|
|
Frequency |
Cortex A7 1.2GHz, 4-core |
|
Ram |
1G |
|
Flash |
8GB |
|
DISPLAY |
|
|
Size |
7.0" 10.1'' 12.1'' 12.3'' 15.6'' |
|
Resolution |
1280*800 1280*800 1280*800 1920*720 1920*1080 |
|
Backlight (cd/m2) |
600 600 450 600 450 |
|
Type |
TFT true color |
|
HMI |
|
|
Touchscreen |
Capacitance（resistance optional） |
|
Buttons |
No buttons |
|
Electrical |
|
|
Power supply |
7~36V DC |
|
Software |
|
|
Operation system |
Linux/Android |
|
Program platform |
QT5/CODESYS 3.5 |
|
Environment |
|
|
Ingress Protection |
IP65 (up to IP67) |
|
Working temperature |
-30℃~+70℃ |
|
Storage temperature |
-40℃~+80℃ |
|
Physical |
|
|
Installation |
Bracket mounting |
|
Shell material |
Aluminium alloy |
